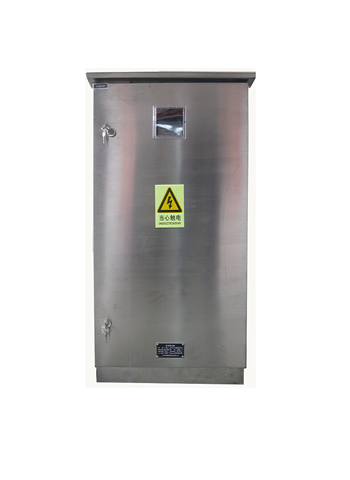

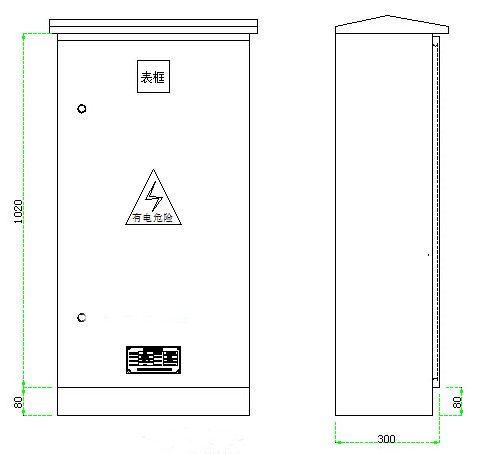

Lightning protection distribution box for Charging pile

Electric surge protector of composite low-voltage distribution system, which is in the form of a box, is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has validation detection indication, powerful discharge capacity of lightning current. It can be used for the general supply of building.This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.

Model	HD-CDZ
Nominal working voltage Un	380V/220V
Lightning impulse current （10/350us）	25KA
Nominal discharge current （8/20us）	100KA
Voltage protection level Up	1.5KV
Afterflow restraint If	3KA
Response time Ta	≤25ns
Operating temperature range Tup	-40℃to+70℃
Protection grade	IP55
Three-phase load power	7KW/10KW
Three-phase load port	Two ports
Single phase load power	7KW
Single-phase load port	Two ports
Total load power	31KW
